EPS block moulding machine with vacuum tank

EPS block moulding machine with vacuum tank

Main features:

· The machine adopts PLC and touch screen for controlling the mould opening, mould closing, material feeding, steaming, temperature keeping, vacuum cooling, de-molding and ejecting;

· Adopts high-efficient vacuum system and condensate device to improve molding speed and reduce the moisture content. Vacuum supported machine is very efficient for making high-density and thick blocks;

· The machine is welded from high-quality profile steel, through heat treatment, ensuring high strength of the machine without deformation, and possibility of bearing the expansion force of the high-density product;

· Adopting advanced molding technical, the machine is applicable to produce high-density and low-density block and ensure same quality of inside and outside block;

· The mould cavity surface is coated with Teflon, ensuring easy de-mould and good finish of the block;

· Block conveying line and electronic weighing scale for machine is optional.

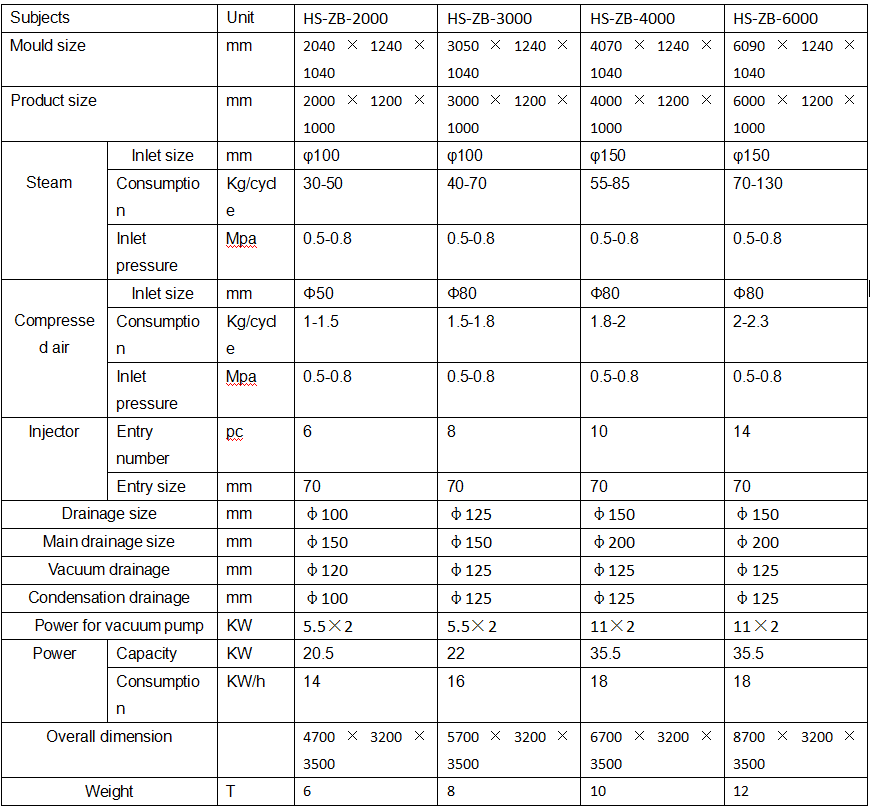

Technical data:
